DESCRIPTION :
Teledyne Paradise Datacom’s High Power Outdoor (W) series SSPAs represent the latest in High Power Microwave
Amplifier Technology. The SSPA package achieves the highest power density in the industry along with enhanced
maintainability.
All subassemblies are accessible and replaceable in the field. Local, front panel, control is available with a user friendly
interface. A full compliment of serial and parallel (contact closure) control is also available via circular connectors.
A state of the art thermal platform provides efficient cooling for the amplifier module and power supplies. This ensures the
highest possible MTBFs for microwave power amplifiers.
Along with high reliability comes the ultimate in amplifier maintainability. Amplifier modules and power supplies are
easily accessed and removed, making this one of the easiest amplifier assemblies to maintain in the field.
FEATURES

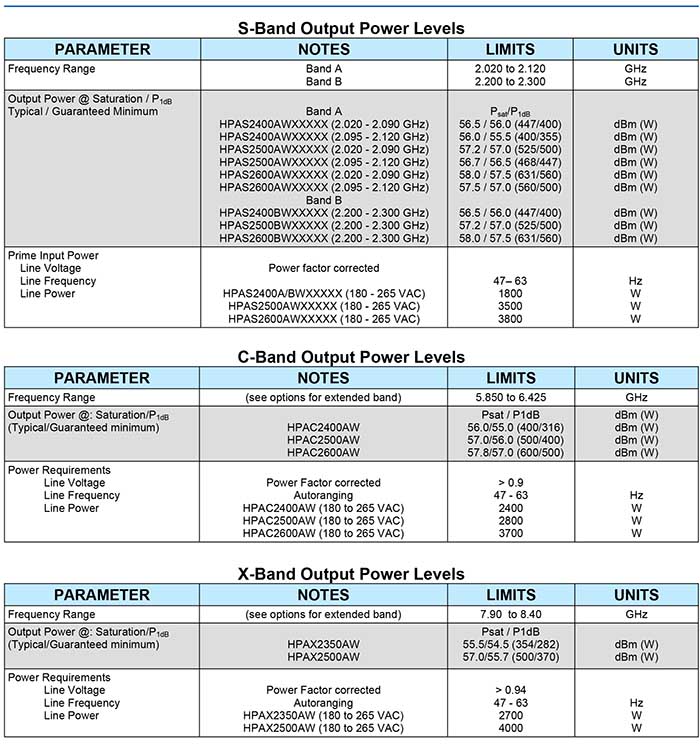

• Extremely High Power
Density:
600W S-Band
500W X-Band
600W C-Band
250W Ku Band
• Field Replaceable Subassemblies
• RF Output Sample Port
(-40dBc)
• Ethernet Port
• RF Gain Adjustment (20 dB)
• Built-in 1:1 Redundancy Control
OPTIONS
• RF input sample port (-10 dBc)
• 48 VDC operation
• L-Band Input operation
• Reflected Power Monitor
• Phase Combined Systems
• Fiber Optic Input
• Antenna Mounting Kit

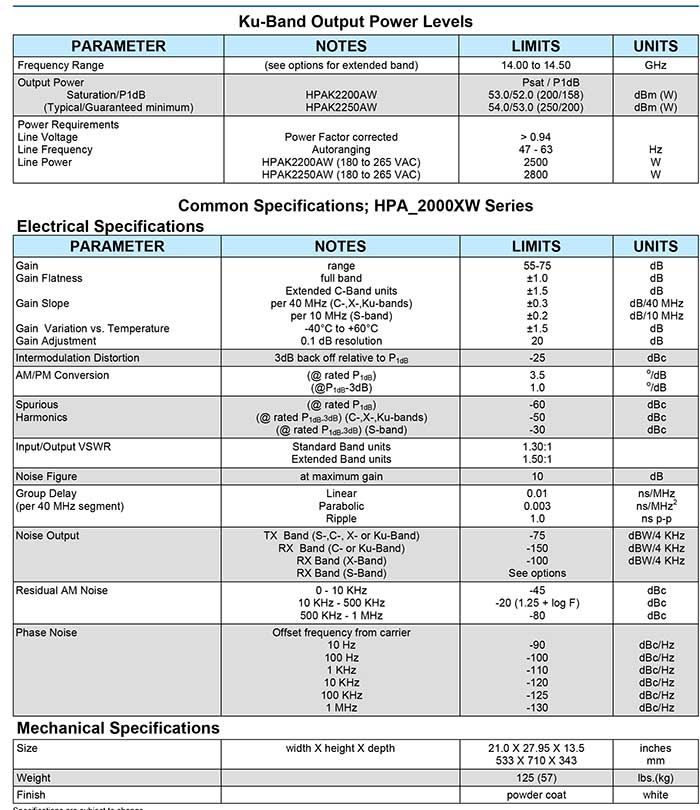

• Receive Band Reject Filter for S-Band units up to 400W in sub-band A SPECIFICATIONS
• Housing:
21.0 X 27.95 X 13.5 in.
533 X 710 X 343 mm
125.0 lbs. / 57 kg;
• White powder coat finish
• Operating temperature: -40 to +60 °C
• Relative Humidity: 100% condensing
• Integrated Forced-Air Cooling
|
|

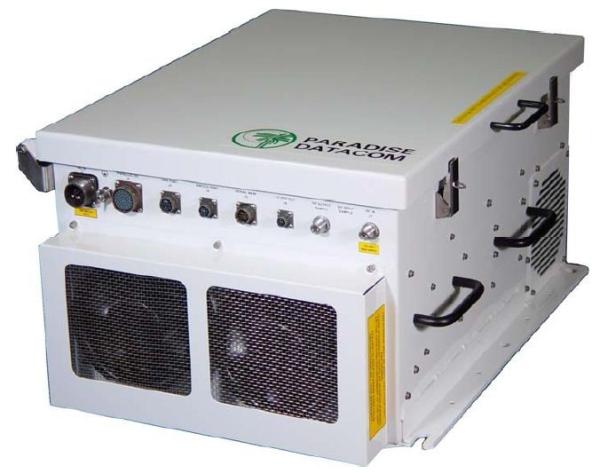

High Power Outdoor Solid State Power Amplifier/Earth Station for Sattellite Communication Images
|
